Details

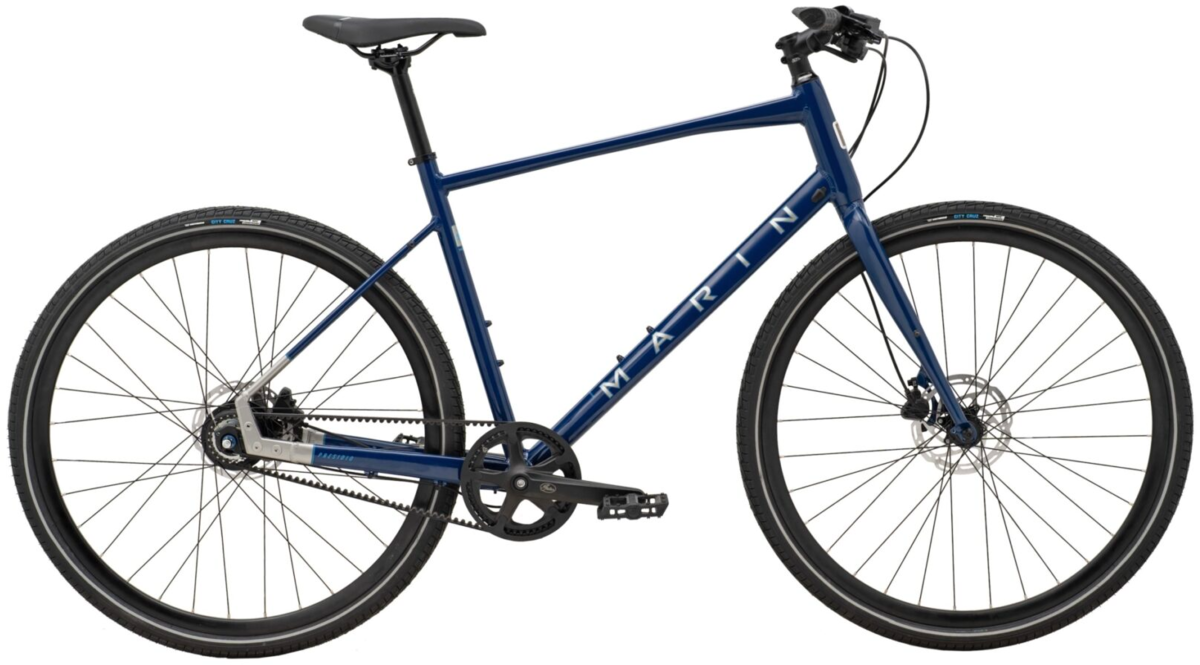

The Marin Presidio 3 is the commuter bike of your dreams, because why shouldn't your daily driver also be a sports car? We've built a fast, fun and exciting commuter with a lightweight Series 2 aluminum frame and straight-blade fork.
We've also added heaps of reliability and "woah, that's cool!" with a Gates Carbon Drive 8-speed belt-driven drivetrain and internally-geared Shimano Nexus rear hub. Shimano hydraulic disc brakes, Vee Tire tires and plenty of reliable Marin components complete the package.
LIGHTWEIGHT ALUMINUM FRAMES
Presidio frames are constructed of lightweight 6061 aluminum tubing with rack and fender mounts. Series 2 tubing on the Presidio 3 and 2 models add internal cable routing, and belt drive compatible forged slider dropouts for internally geared hubs.
MARIN SLIDER DROPOUTS
Our new slider dropouts were created specifically to bring the best technologies for commute bikes into a clean and tidy package. The dropouts slide to tension belts and chains, while incorporating flat mount disc brakes, and a direct mount rear kickstand to support the bike where weight is centered with gear.
DISC BRAKES
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
INTERNALLY GEARED HUBS
Internally geared hubs on the Presidio 3 and 2 package the gearing into a compact, maintenance-free package.
SIZE | X-Small | Small | Medium | Large | X-Large |
---|---|---|---|---|---|
A - Stack (mm) | 557 | 571 | 590 | 609 | 637 |
B - Reach (mm) | 385 | 400 | 420 | 440 | 455 |
C - Headtube Angle (°) | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
D - Headtube Length (mm) | 140 | 155 | 175 | 195 | 225 |
E - Seattube Angle (°) | 73.5° | 73.5° | 73.5° | 73° | 73° |
F - Seattube Length (mm) | 380 | 430 | 480 | 520 | 550 |
G - Toptube Effective (mm) | 550 | 569.2 | 594.8 | 620.4 | 643.8 |
H - BB Height (mm) | 283.5 | 283.5 | 283.5 | 283.5 | 283.5 |
I - BB Drop (mm) | 70 | 70 | 70 | 70 | 70 |
J - Chainstay (mm) | 445 | 445 | 445 | 445 | 445 |
K - Wheelbase (mm) | 1050 | 1070 | 1096.7 | 1123.4 | 1148.4 |
L - Standover Height (mm) | 660.74 | 705.38 | 745.2 | 780.34 | 809.68 |
M - Fork Offset (mm) | 50 | 50 | 50 | 50 | 50 |
Seatpost Diameter (mm) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
Handlebar Width (mm) | 640 | 640 | 640 | 640 | 640 |
Stem Length (mm) | 70 | 70 | 70 | 70 | 70 |
Crank Length (mm) | 170 | 170 | 175 | 175 | 175 |
SIZE | X-Small | Small | Medium | Large | X-Large |
---|---|---|---|---|---|
Rider Height (In) | 4'11" to 5'1" | 5'1" to 5'5" | 5'5" to 5'9" | 5'9" to 6'1" | 6'1" to 6'3" |
Specs
Frame | Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts |
---|---|
Fork | 6061 Aluminum, Straight-Blade, Post-Mount Disc |
Wheels | Marin Aluminum Double Wall, 25mm Tall, Disc Specific |
Hubs | Shimano Nexus 8D 8-Speed Internally Geared Hub, Disc, 32H |
Spokes | 14g Black Stainless Steel |
Tires | Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead |
Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
Crankset | Gates Carbon Drive S150, 50T |
Shifters | microSHIFT SL 8-Speed IG Shifter |
Brakes | Tektro Hydraulic, 160mm Rotor |
Brake Levers | Tektro Hydraulic |
Handlebars | Marin Alloy Flat Top Riser |
Tape/Grips | Marin Ergonomic Locking |
Stem | Marin 3D Forged Alloy |
Headset | FSA Orbit CE, Sealed Cartridge Bearings |
Seatpost | Marin Alloy, 27.2mm |
Saddle | Marin Fitness |
Pedals | Marin Oso OE Flat |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Navy/Dark Silver/Silver Cyan / X-Small | 843346125736 | 737582001 | MARPRESIDIO32411 |
Gloss Navy/Dark Silver/Silver Cyan / Small | 843346125743 | 737582002 | MARPRESIDIO32421 |
Gloss Navy/Dark Silver/Silver Cyan / Medium | 843346125750 | 737582003 | MARPRESIDIO32431 |
Gloss Navy/Dark Silver/Silver Cyan / Large | 843346125767 | 737582004 | MARPRESIDIO32441 |
Gloss Navy/Dark Silver/Silver Cyan / X-Large | 843346125774 | 737582005 | MARPRESIDIO32451 |
