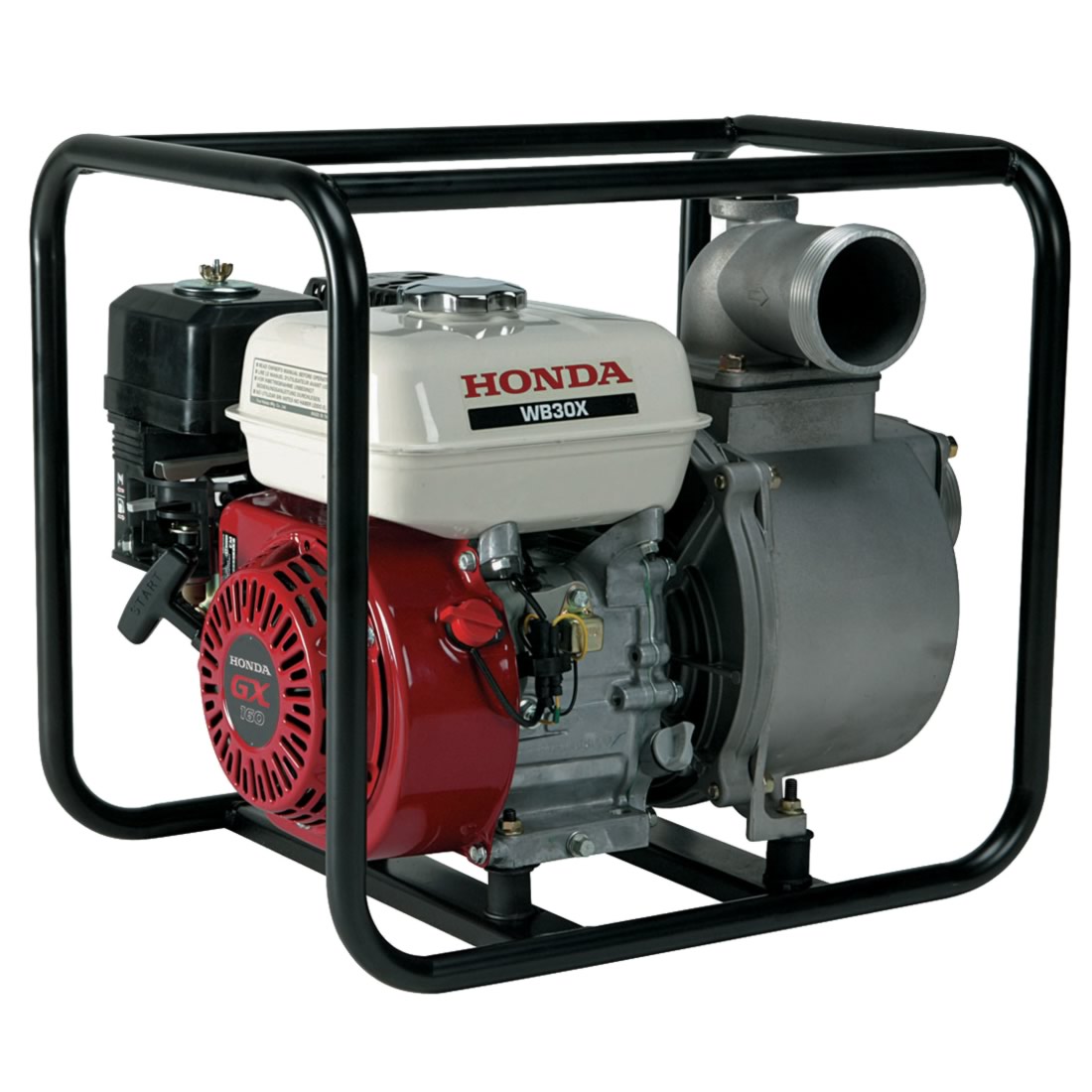

Honda WB30

• General purpose, centrifugal 3" pump
• Easy starting Honda OHV commercial engine
• 290 gal./min. capacity
• Silicon carbide mechanical seal
• Cast iron volute and impeller
Easy starting Honda OHV commercial engine
Durable silicon carbide mechanical seal
Cast iron volute and impeller
Heavy duty full frame protection
Isolation mounted engine and pump
Protected by Honda Oil Alert®
3 year residential/commercial warranty
Large strainer
Engine GX160
Displacement 163cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert Std
Pump type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 150 sec @16.4 ft.
Drive system Direct
Discharge capacity 290 gal/min
Suction port diameter 3" NPT
Discharge port diameter 3" NPT
Total head lift 85 ft.
Suction head lift 25 ft.
Maximum pressure 37 psi
Solids handling N/A
Dimensions (LxWxH) 20.1"x 15.2" x 17.9"
Dry weight 57 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.9 hr
Strainer Part # 78325-YG4-000
Residential Warranty 3 years
Commercial Warranty 3 years
